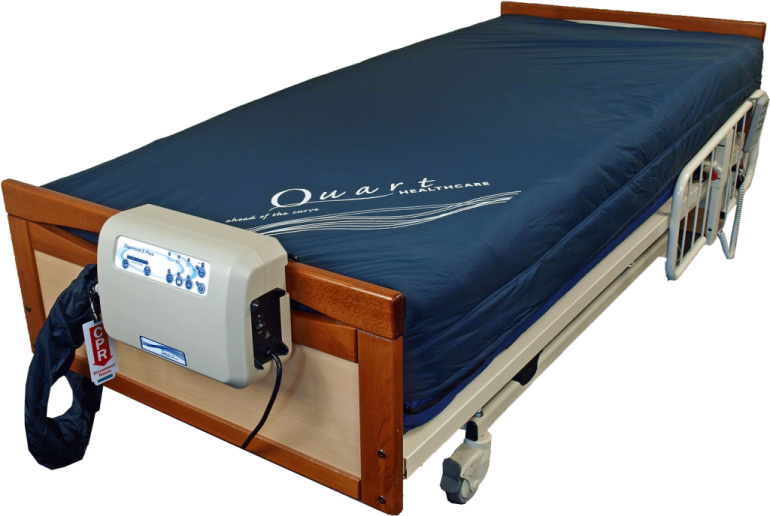

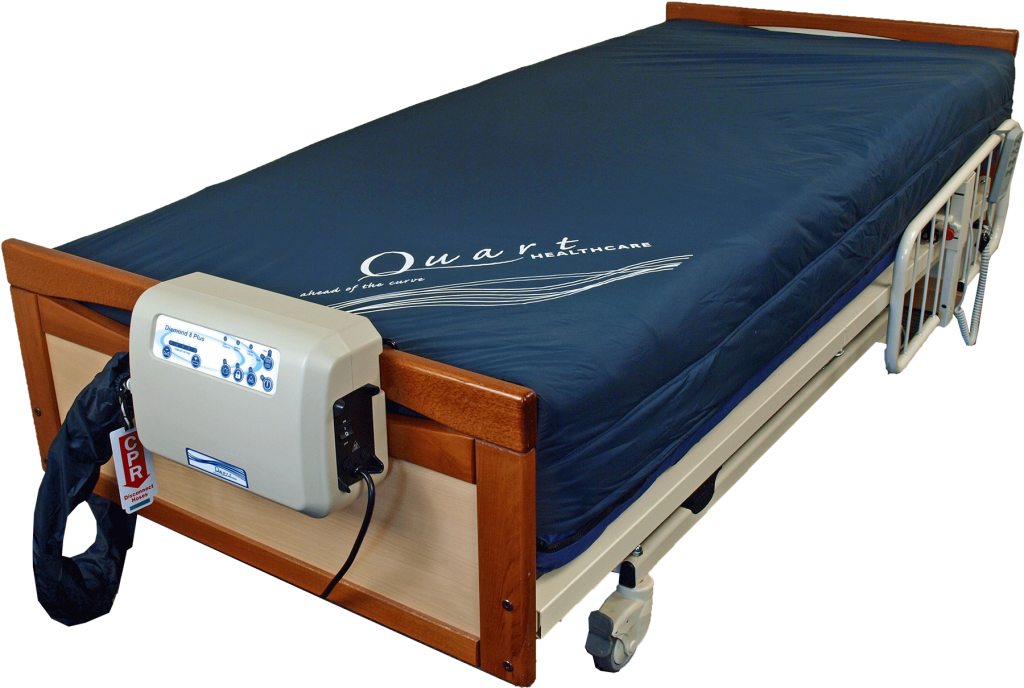

Diamond 8 Plus Low Air Loss Mattress

The Diamond 8 Plus is ideal for individuals with Stage I – IV pressure wounds in the coccyx and lower back area. It has a pre-set cycle time of 21 minutes. The maximum weight capacity is 650 lbs. Built-in automatic two hour battery backup in case of a power failure.

The Diamond 8 Plus mattress replacement system is an alternating “micro” low air loss mattress replacement system that combines the most advanced technology and clinically effective features for the prevention and treatment of pressure ulcers.

The design of the individual cells, inside the mattress, are similar to a figure 8, divided into two 4″ sections. The lower four inches remain inflated at all times. The top four inches alternate in a 3:1 pattern so that 66% of the body is constantly supported. This allows for a more stable surface.

To ensure the longevity of the control unit we recommend inspecting / cleaning the filter monthly.

Micro Low Air loss Technology - Air escapes from 20 laser-cut openings in the centre 10 cells of the mattress. Air is distributed equally under a vapour-permeable, quilted cover that acts to wick moisture away from the individual.

Deep Cell 3:1 Alternation Therapy - 18 independent 8 inch high cells inflate and deflate in a 3:1 cycle, creating maximum support for the individual using 2/3 of the air cells. Cells, in cross section, have a figure “8” design; the bottom half is always inflated and only the top half alternates. In the event of a power failure the bottom half of the cells remain inflated up to 72 hours. 2-hour battery back-up built into control unit.

Comfort Level - 5 soft/firm settings offer easy comfort adjustment and allow the caregiver to fine tune therapeutic support and optimize patient comfort.

Static Mode - Provides constant low micro air loss and acts as an alternative to the alternation mode.

Auto Firm - Inflates the mattress with a simple push of a button for installation and nursing care requirements.

Auto Alarm - Visual and audio alarms in the event of power failure.

CPR quick-Release Valve - Deflates the torso section in less than 30 seconds in the event of medical emergencies
