RAZ-ART Attendant Rotational Tilt

Raz Mobile Shower Commode Chairs — Designed and manufactured to the highest standards of the discerning healthcare professional.

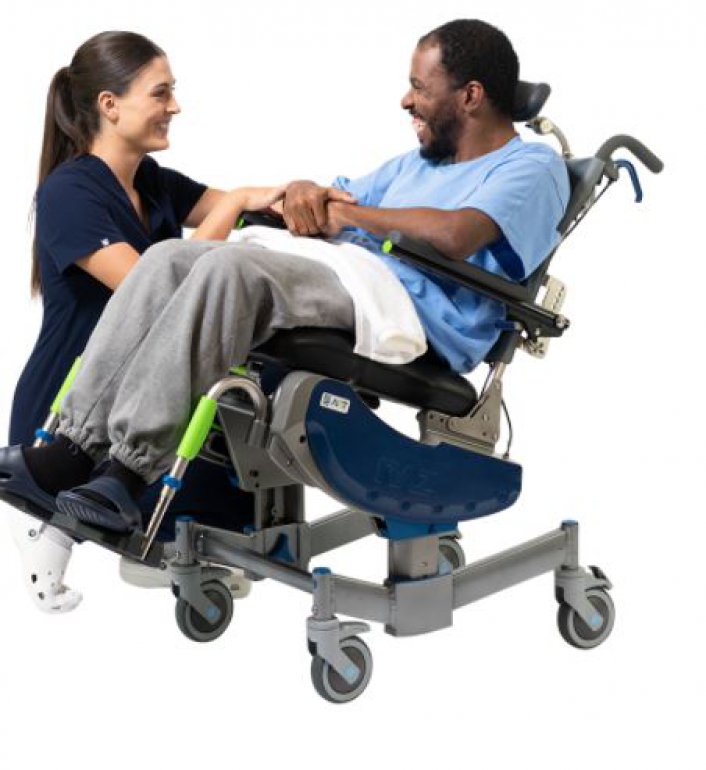

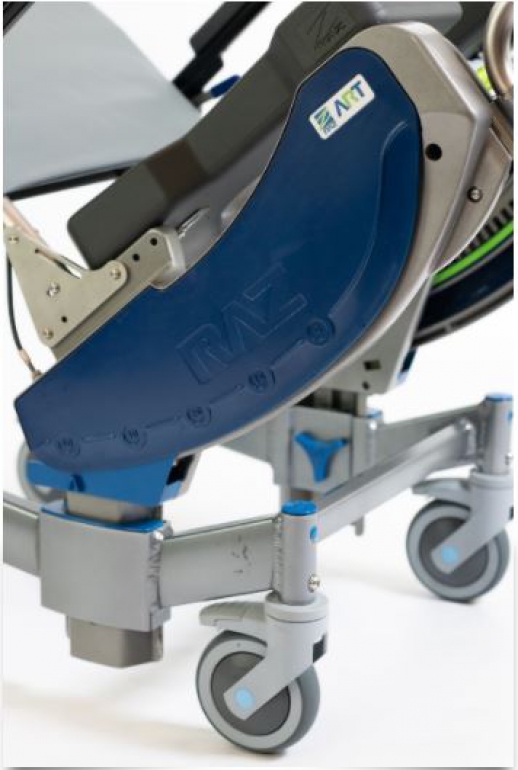

The Raz-ART (Attendant Rotational Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes a patented, dual-arc, orbital tilt system that allows for the smallest footprint and lowest tilt effort of any chair on the market. Unique, aluminum frame design provides two ranges of tool-less height adjustment (20”-23” and 24”-27”). Patent-pending tilt-locking system of the Raz-ART eliminates cable “looping,” which is prevalent on other designs

The Raz-ART mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), adjustable-tension back upholstery, molded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, aluminum frame fits over most toilets and is designed for easy side and front access by the user or attendant.

FEATURES:

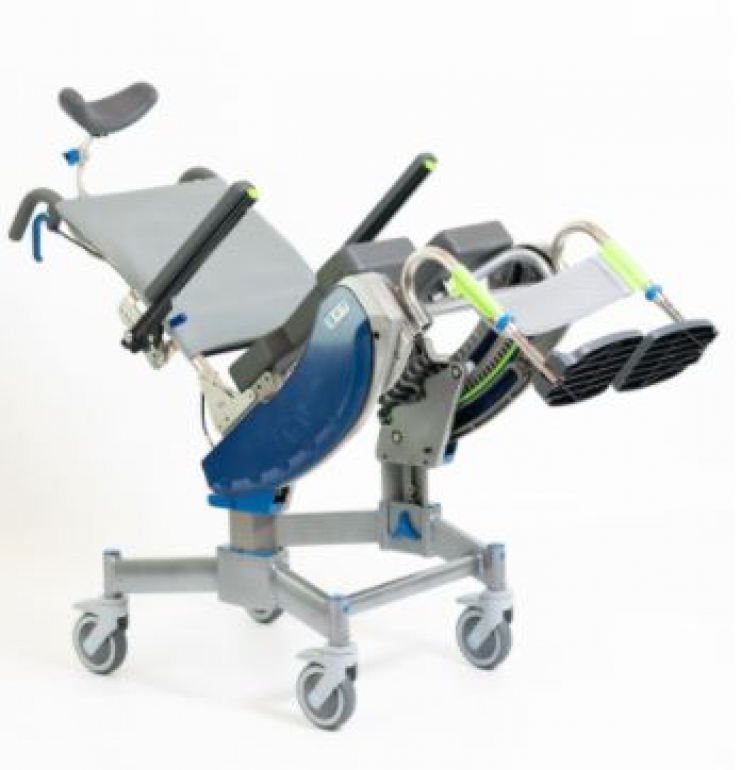

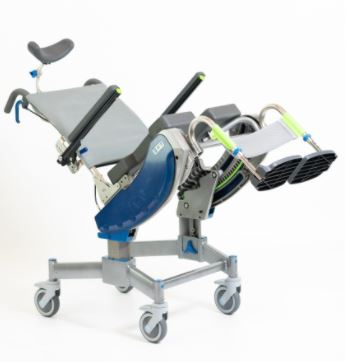

Tilt Function

• seat frame tilts for extra pressure reduction and comfort
• locking pneumatic springs provide infinite adjustment up to 40°
• pressurized springs also help lift seat frame to an upright position
• conveniently located tilt triggers provide smooth tilt control

Moulded Seat

• contoured for pressure reduction and pelvic stability
• soft integral-skin foam for comfort and durability
• available with open or bridged front
• available sizes: 18″Wx16″D, 18″Wx19″D

Adjustable Footrests

• removable for transfers and cleaning
• swing in and out easily
• flip-up footplate
• adjust for leg length without tools
• available in regular length 16″-20½” and extended length 18″-22½”

Ischial Pelvic Alignment System

• provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
• allows centering of the aperture (opening) around the users’ ITs
• seat locks in place for transfers
• removes easily for cleaning
• optional spacers for anterior or posterior seat angle adjustment [Z491]

Fixed Back

• includes adjustable tension fabric back upholstery
• includes flip-up, angle-adjustable arms
• available in 17” and 20” back heights
• locking armrest upgrade available [Z710]

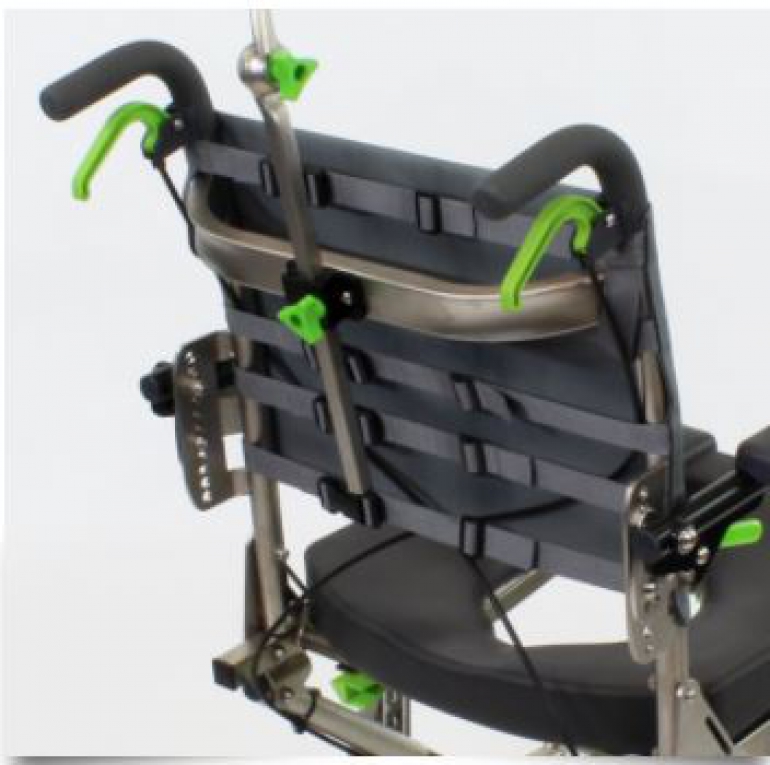

Tension-Adjustable Back Support Fabric

• vinyl-coated fabric for durability, comfort, and better infection control
• provides individualized trunk support for optimal positioning and comfort
• removable for machine washing
• available in 17”, 20”, and 24” back heights

Headrest (small, standard)

• headrest size is approximately 10” W x 4” H
• integral skin foam headrest is easy to clean
• headrest is shaped to cradle the head and can be adjusted to fit looser or tighter
• headrest support can be adjusted infinitely forward and backwards within a 5½” range, and vertically within a 11½” range
• headrest angle can be adjusted for comfort
• headrest – small and mounting fixture are included with Raz-AT (Z300) and Raz-AT600 (Z360) chairs and optional on all other Raz models

Commode Pan

• Injection-molded pan is designed for function
• Includes a lid for splash and odor control
• Wide handle angled at 45 degrees provides better ergonomics
• Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
• Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
• Fits in a standard autoclave and Arjo Tornado Washer
