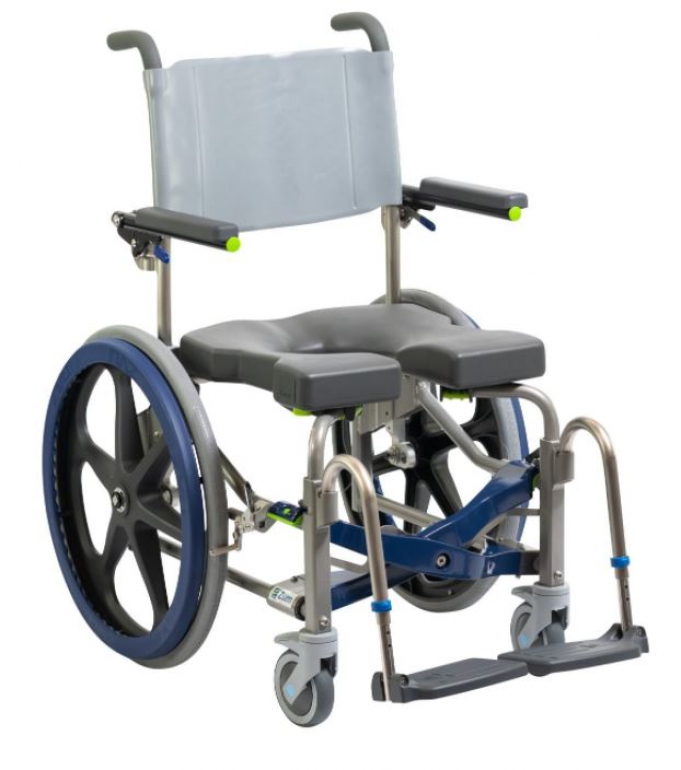

RAZ-Züm-AP/SP Mobile Shower Commode Chair

Raz Mobile Shower Commode Chairs — Designed and manufactured to the highest standards of the discerning healthcare professional.

The Züm-AP/SP are the first folding frame mobile shower commode chairs that offer the rigidity that you would expect from a premium product. The unique cross brace design allows the Züm to fit fully over a toilet for optimal alignment of the aperture with the toilet bowl. Standard features include:

• Crossbrace with low pivot point and forward arch allows Züm to be positioned fully over the toilet
• Crossbrace lock-down system and rear seat support tube provide unparalleled rigidity
• 18”W aluminum frame – fits over most standard toilets
• Unrestricted front and side access
• 17 standard seats + custom (with IPAS)
• Removable back support
• Flip-up arm supports with optional lock kit
• 22” or 24” wheels available for the Züm-SP model
• 2” fore/aft rear wheel adjustment (fine tunes center-of-mass position for SP model)
• Quick-Release Axles are standard
• BYOW (Bring Your Own Wheels) custom axle receivers to allow use of client’s own wheelchair wheels

Only Raz offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably centered around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. With so many adjustments and options available, the Züm is a true prescriber-friendly, folding frame mobile shower chair.

Moulded Seat

• contoured for pressure reduction and pelvic stability
• soft integral-skin foam for comfort and durability
• available with open or bridged front
• available sizes: 18″Wx16″D, 18″Wx19″D

Ischial Pelvic Alignment System

• provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
• allows centering of the aperture (opening) around the users’ ITs
• seat locks in place for transfers
• removes easily for cleaning
• optional spacers for anterior or posterior seat angle adjustment [Z491]

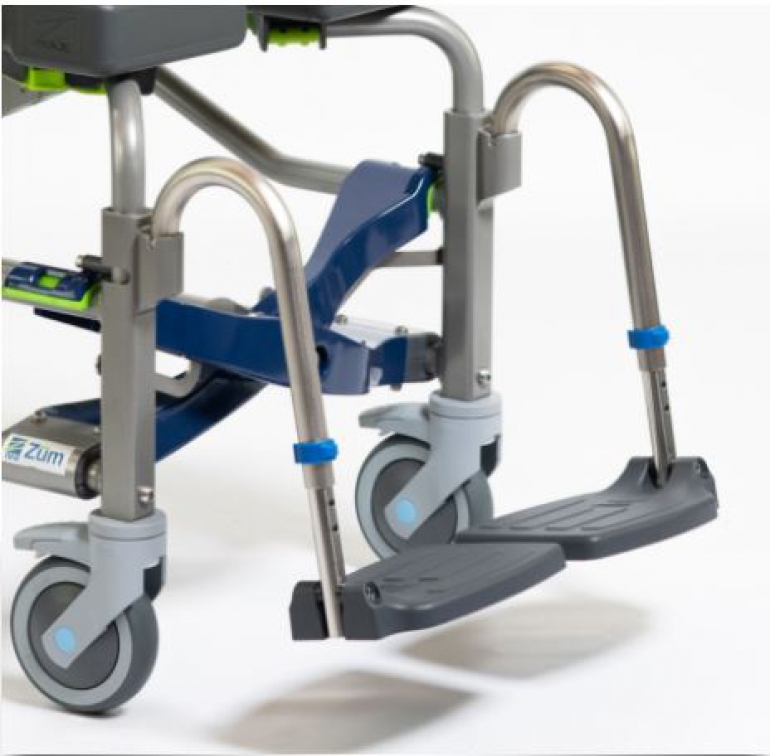

Adjustable Footrests

• removable for transfers and cleaning
• swing in and out easily
• flip-up footplate
• adjust for leg length without tools
• available in regular length 16″-20½” and extended length 18″-22½”

Multi-Position Axle Plates

• provide up to 4″ of vertical seat height and 1.5″ of horizontal adjustment for optimum user / toilet bowl access
• allow use of 22″ or optional 24″ rear wheels

Commode Pan

• Injection-molded pan is designed for function
• Includes a lid for splash and odor control
• Wide handle angled at 45 degrees provides better ergonomics
• Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
• Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
• Fits in a standard autoclave and Arjo Tornado Washer
